Multi Interface Wireless End Node

Based on LoRa Spread Sprectrum Technology.

  • New LoRa spread spectrum modulation technology brings further communication distance and stronger anti-interference ability.
  • Under ideal condition communication can be upto 5 km.
  • Rich Industrial Interfaces RS232, RS485, GPIO, Analog Input.
  • Support users to set the communication key and it cannot be read, which greatly improves the confidentiality of user data.
  • Support Wireless Modbus communication between gateway and end nodes.

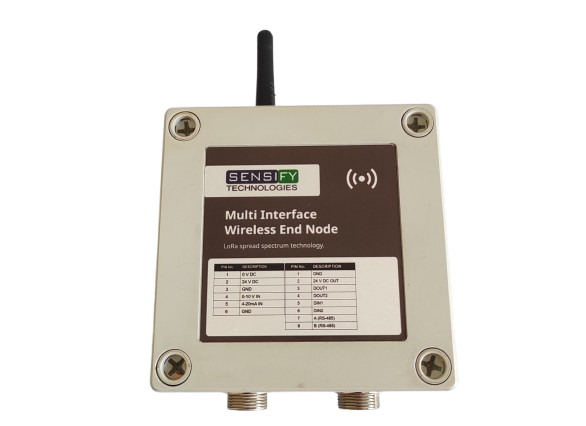

Multi Interface Wireless End Node

Frequency IN865/EU868/US915
Wireless Range  up to 5 km free to air.
 Transmitting Power  22 dBm
 Receiving sensitivity  -147 dBm
 Digital Input  2 Nos. 24V DC.
 Digital Output  2 Nos. 24V DC sink.
 Anaolg Input  1 No. 0-10 V DC, 1No. 4-20 mA
 Operating Voltage  24V DC
 Operating Current  1 Amp
 Communication  RS485

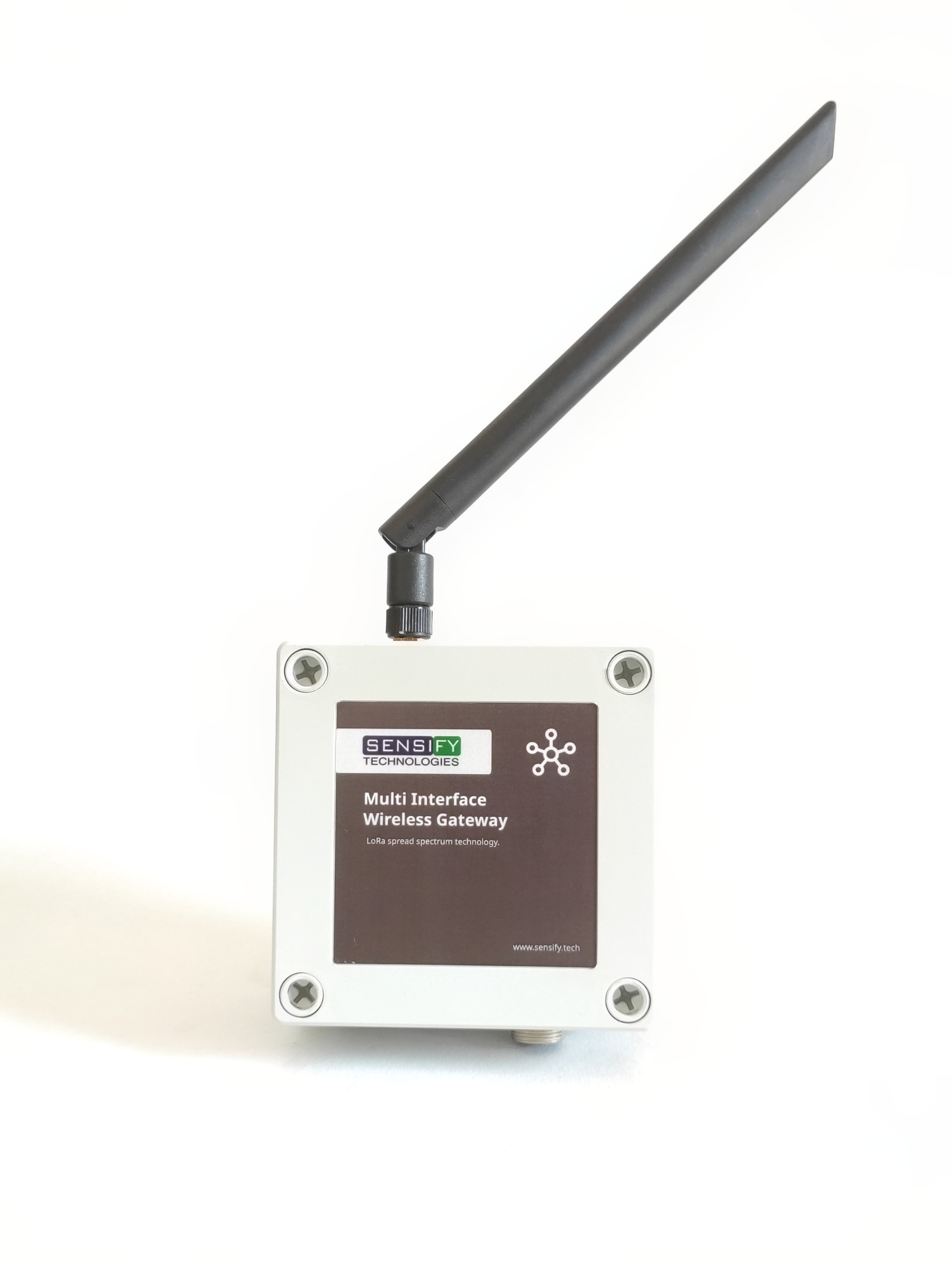

Multi Interface Wireless Gateway

 Frequency  IN865/EU868/US915
 Wireless Range  up to 5 km free to air.
 Transmitting Power  22 dBm
 Receiving sensitivity  -147 dBm
 Communication  RS485
 Operating Voltage  24V DC
 Operating Current  1 Amp

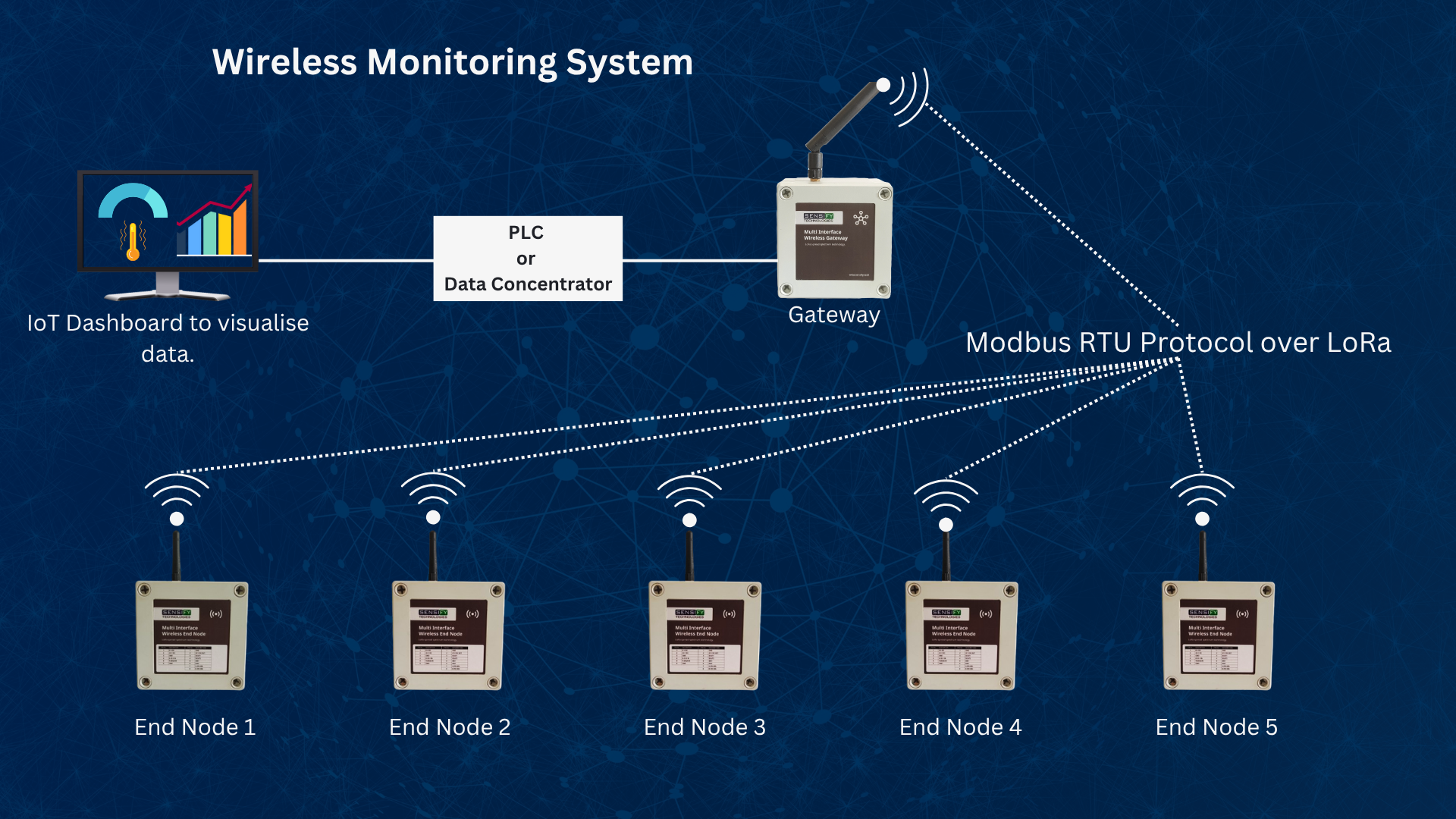

Application

Feel free to contact us for any customization of wireless system as per the required interface.
