Our DC IV Characterization System redefine accuracy and reliability in the realm of electrical measurements. Designed for professionals and enthusiasts alike, our product offers unparalleled performance and versatility.
Dual-Functionality: Seamlessly switch between a DC voltage source and a current meter with ease.
Wide Range: Generate voltages ranging from -20V to +20V, and measure currents from 1 pico ampere to 200 milli ampere, covering a broad spectrum of applications.
High Precision: Experience exceptional accuracy and resolution for precise measurements, ensuring reliable results every time.
Intuitive Interface: User-friendly software makes operation effortless, even for complex experiments.
Compact Design: Sleek and portable, our instrument fits seamlessly into any workspace, whether in the lab or in the field.
The system is a complete current-voltage (I-V), current-time (I-t) and power-voltage (P-V) measurement environment.
Data logging can be done with USB based interface on PC.

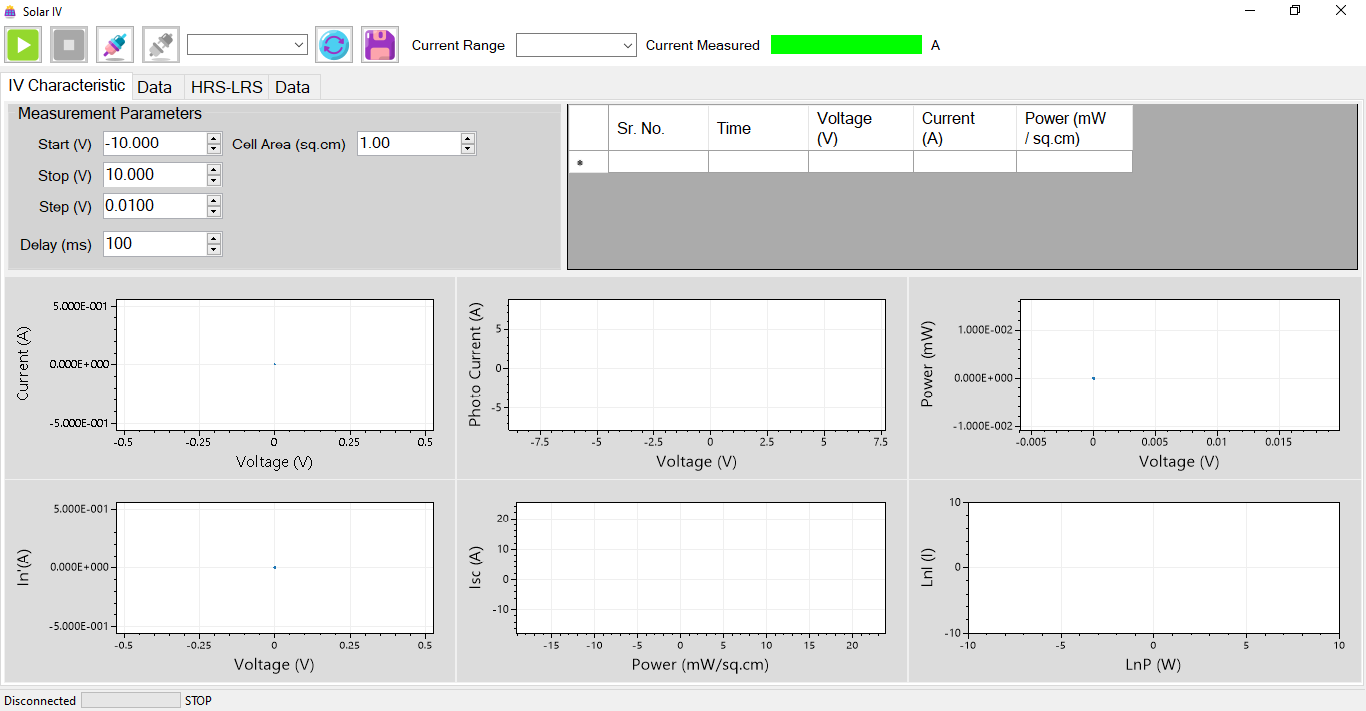

PC Based user interface for data viewing, data can be saved in .csv format for further processing.
Voltage Source Specifications
| Range | Programming Resolution | Source Accuracy 25°C ±5°C ±(% rdg. + offset volts) | Source/Sink Limit |
|---|---|---|---|
| 2 V | 100 uV | 0.1% + 1mV | ±2 V @ ±0.5 A |
| 20 V | 1 mV | 0.1% + 5 mV | ±21 V @ ±0.5 A |
Current Meter Specifications
| Range | Resolution | Measure Accuracy 25°C ±5°C ±(% rdg. + offset volts) |
|---|---|---|
| 2 nA | 1 pA | ± 0.5 % +500 fA |
| 20 nA | 10 pA | ± 0.5 % +3 pA |
| 200 nA | 100 pA | ± 0.5 % +20 pA |
| 2 uA | 1 nA | ± 0.5 % +200 pA |
| 20 uA | 10 nA | ± 0.5 % +2 nA |
| 200 uA | 100 nA | ± 0.5 % +20 nA |
| 2 mA | 1 uA | ± 0.5 % +200 nA |
| 20 mA | 10 uA | ± 0.5 % +2 uA |
| 200 mA | 100 uA | ± 0.5 % +1 mA |
We provide tailor-made IV characterization systems & end to end solutions designed to meet customer requiremets.
